4L60E / 4L65E / 4L70E Speed Kit, 1998 and newer
Converts a 1998-up 4L60E to a factory mechanical speedometer.
$850.00
This kit will convert your 1998 and up 4L60E transmission to a factory mechanical speedometer and still have functional VSS capability. This conversion kit features a machined billet adapter that mounts to the 6 bolt stock transmission, allowing the standard 4 bolt tail housing to bolt upright. It also includes a new mechanical speedometer sleeve with a new gear, and a reluctor/drive gear bushing assembly. This gear assembly drives the mechanical speedo and operates the VSS sensor. This is a simple 30 minute bolt-on installation.
This one is cut to your numbers. Run the speedometer gear calculator first, then bring the tooth count to checkout. Between sizes, or an odd rear gear, call 469-688-6985 and we will cut it to suit.
| Transmission | 4L60E / 4L65E / 4L70E, 1998+ |
|---|---|
| Speedometer | Factory mechanical |
| VSS | Retained and functional |
| Adapter | Machined billet, 6 bolt trans to 4 bolt tail housing |
| Also includes | Mechanical speedometer sleeve with new gear, reluctor / drive gear bushing assembly |
| Install | 30 minute bolt-on |
| Gears | Cut to your calculated tooth count |
| Lead time | Ships in 2 days |
From the tech notes
Related parts

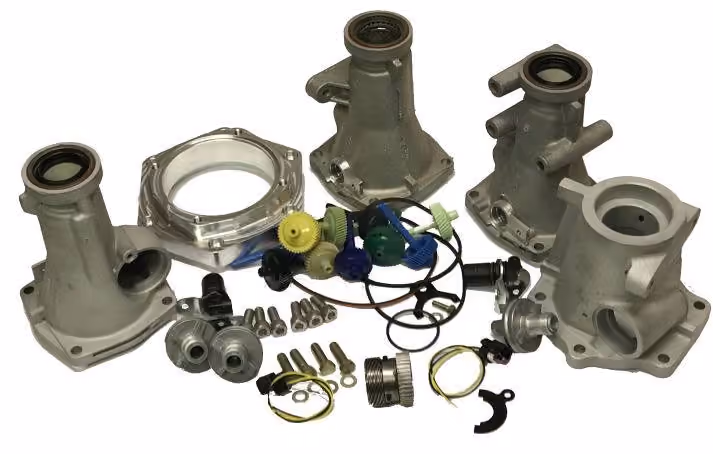

- 4L60E / 4L65E / 4L70E Tail Housing Kit — Mechanical speedometer drive and factory shifter location for the 4L60E family.
- 6 Bolt to 4 Bolt Adapter — Allows a 6 bolt transmission to accept a stock 4 bolt tail housing.
Questions people ask
Which transmissions does the 4L60E speed kit fit?
1998 and newer 4L60E, 4L65E, and 4L70E transmissions.
Does the speed kit keep the VSS working?
Yes. The reluctor and drive gear bushing assembly drives the mechanical speedometer and operates the VSS sensor.
How long does installation take?
The listing describes it as a simple 30 minute bolt-on. A machined billet adapter mounts to the 6 bolt stock transmission so the standard 4 bolt tail housing bolts upright.
When does it ship?
The product listing says it ships in 2 days. The shipping policy says speedometer drive kits are made to order and leave in 7 to 10 business days. Call 469-688-6985 if you are planning around a date.
