4L60E / 4L65E / 4L70E Tail Housing Kit
Mechanical speedometer drive and factory shifter location for the 4L60E family.
$850.00

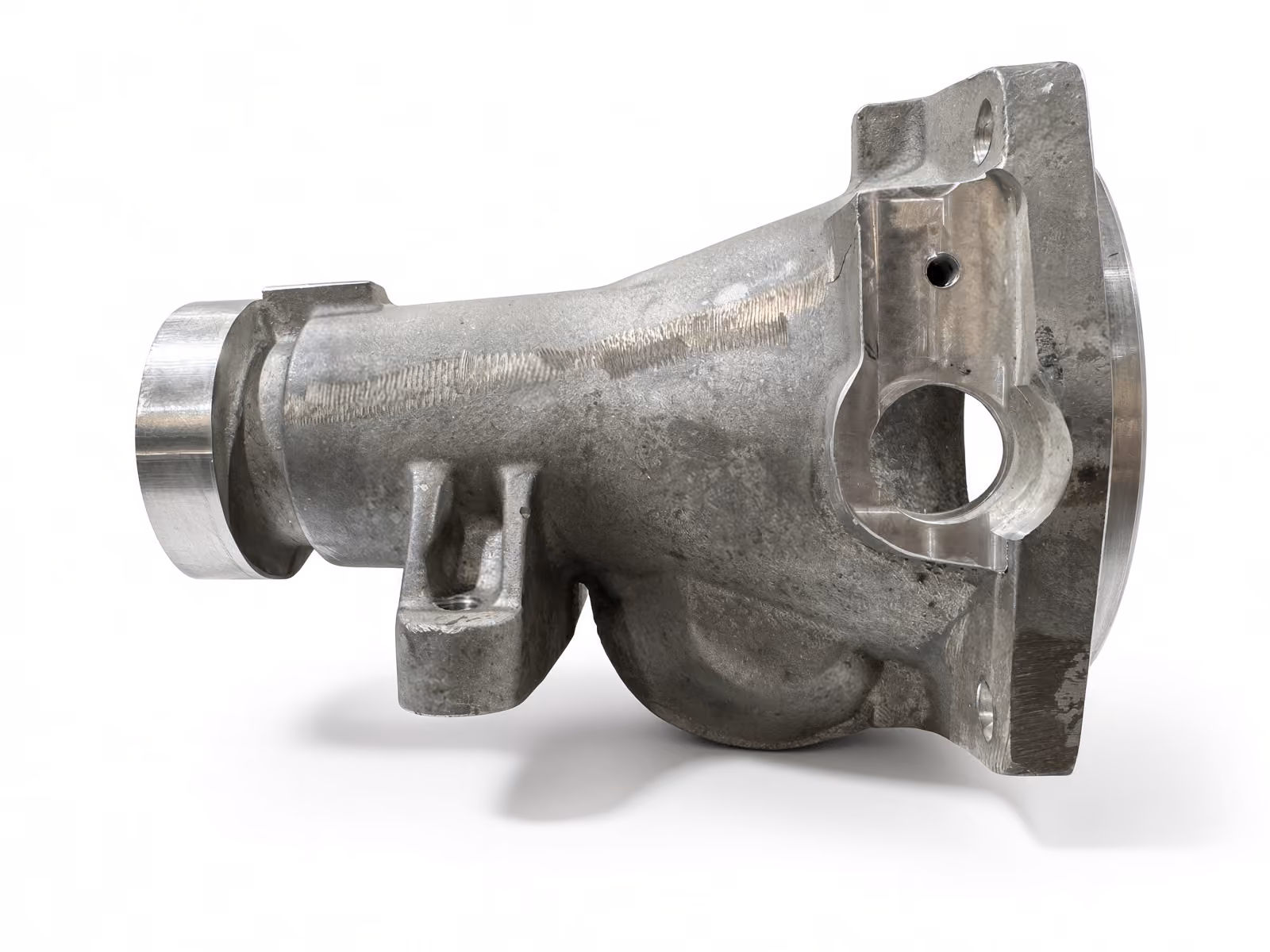

Machined tail housing that gives a 4L60E, 4L65E or 4L70E a factory mechanical speedometer take-off while keeping the shifter where the original transmission put it. VSS capability is retained, so nothing in the stock harness has to be cut or fooled.
This one is cut to your numbers. Run the speedometer gear calculator first, then bring the tooth count to checkout. Between sizes, or an odd rear gear, call 469-688-6985 and we will cut it to suit.
| Transmission | 4L60E / 4L65E / 4L70E |
|---|---|
| Speedometer | Mechanical cable, factory gauge |
| VSS | Retained |
| Reluctor / drive gear | 40T reluctor wheel with 15T speedometer drive gear |
| Gears | Cut to your calculated tooth count |
| Lead time | 2–3 weeks |
From the tech notes
- How to keep a mechanical speedometer with an LS swap
- Why these transmissions have no speedometer cable
- Speedometer gear calculation
Related parts
- 4L60E / 4L65E / 4L70E Speed Kit, 1998 and newer — Converts a 1998-up 4L60E to a factory mechanical speedometer.
- 4L80E Tail Housing Kit — The heavy-duty option, same mechanical speedometer conversion.
Questions people ask
What does the 4L60E tail housing kit fit?
It fits the 4L60E, 4L65E, and 4L70E. It gives those transmissions a factory mechanical speedometer take-off and keeps the shifter where the original transmission put it.
Does the vehicle speed sensor still work?
Yes. VSS capability is retained, so nothing in the stock harness has to be cut or fooled.
What is the lead time on the 4L60E tail housing kit?
The product listing says 2–3 weeks. The shipping policy also says housings are made to order and currently leave the shop in 7 to 10 business days. Call 469-688-6985 if you need a date for a specific order.
How are the speedometer gears chosen?
Gears are cut to the tooth count from your tire diameter and rear gear ratio. Use the speedometer gear calculator, or call the shop and we will walk the numbers with you.
